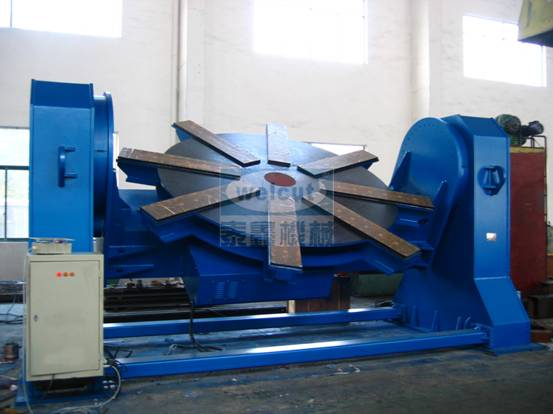

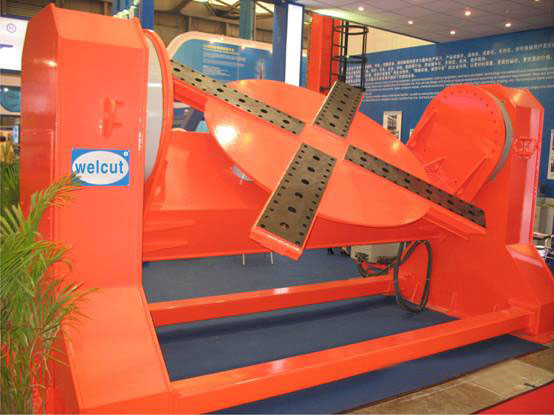

    Name: double-seat positioner
    Introduction:

    type Rated loading(kg) Rotating speed(rmp) Tilting speed(rmp) Tilting angle Workpiece dia(mm) Rotating power Tilting power(kw) Speed regulation Max exxentricity(mm) Max gravity(mm)
    HBD-50 5000 0.05-0.5 0.2 0-90 2500 3 2*2.2 AC Frequency conversion stepless speed regulation 200 600
    HBD-100 10000 0.05-0.5 0.1 0-90 2500 4 2*3 200 600
    HBD-200 20000 0.04-0.4 0.1 0-90 3000 5.5 2*5.5 200 1000
    HBD-300 30000 0.03-0.3 0.1 0-90 3500 7.5 2*7.5 200 1500
    HBD-500 50000 0.02-0.2 0.1 0-90 4000 11 2*11 200 2000
    HBD-1000 100000 0.01-0.1 0.1 0-90 4000 18.5 2*15 200 2500
